Combined Washing Machine Line for Washing, Rinsing, Dewatering and Air Drying

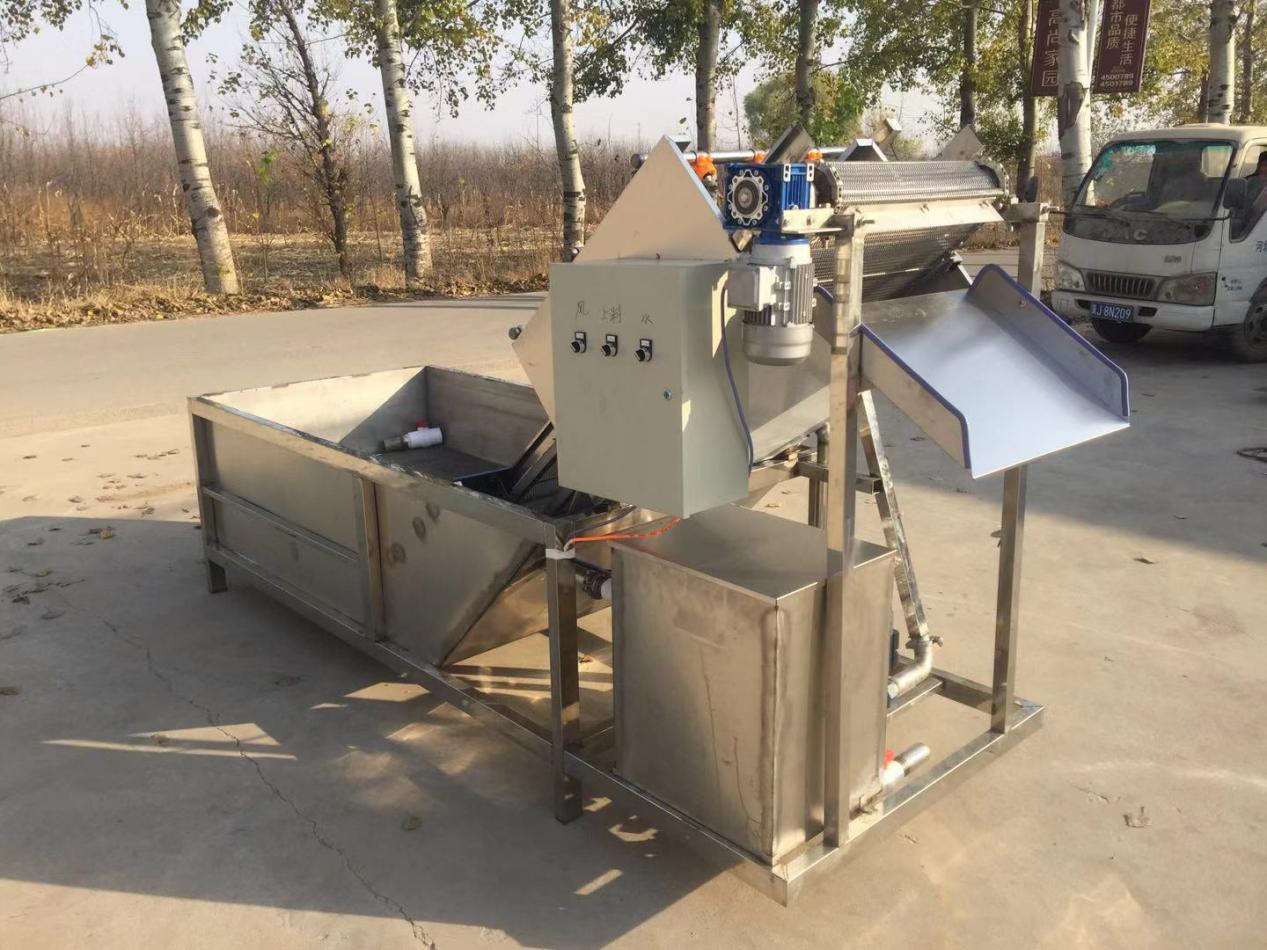

The combined washing machine is a modular cleaning line for fruits, vegetables, dates and aquatic products. It can combine bubble washing, secondary rinsing, vibration dewatering and air-drying sections to build a continuous pre-processing solution.
Key Features
- Modular combination: bubble washing, second washing, draining and air-drying can be selected as needed.
- Bubble tumbling helps loosen soil and impurities without harsh mechanical damage.
- High-position spray rinsing improves the final cleaning effect before discharge.
- Mesh-chain conveying supports continuous production and stable material transfer.
- Vibration draining removes surface water before the drying or packing step.

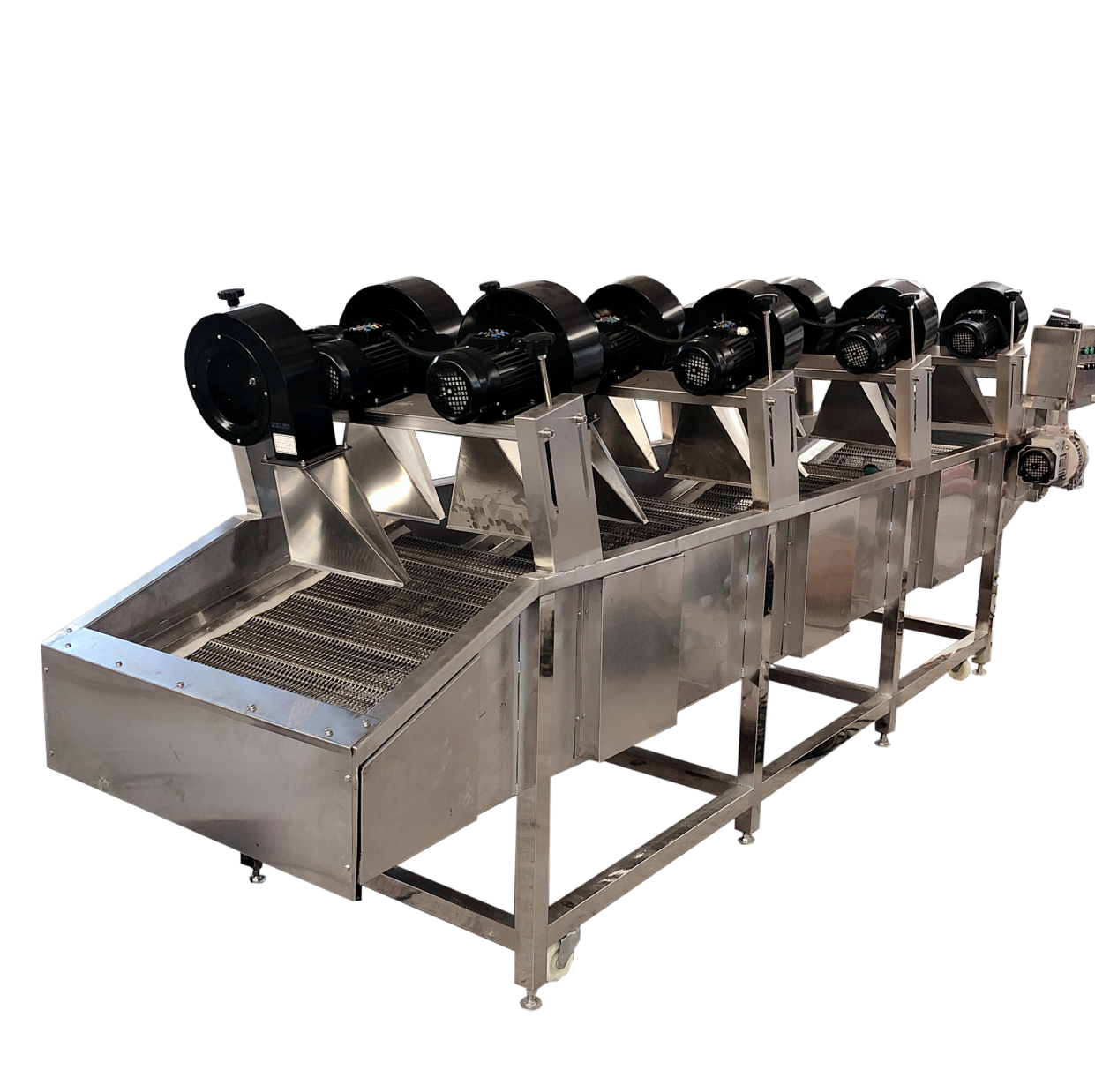

- Air-drying section uses high-volume low-noise fans and multi-turn conveying for better drying coverage.
- Conveyor speed and line layout can be customized for different capacities and factory spaces.
Typical Applications
- Vegetable washing and fresh-cut vegetable processing
- Date, fruit and preserved-fruit raw material cleaning
- Aquatic product cleaning lines
- Pre-processing before cutting, peeling, grading, drying or packing
Working Process
- Raw materials enter the first bubble washing tank.
- Bubble tumbling and water movement loosen surface dirt.
- Materials are conveyed into the second washing or rinsing section.
- Spray rinsing removes remaining impurities at the discharge area.
- Vibration dewatering removes surface water from cleaned products.
- Air-drying fans reduce remaining moisture before downstream processing.
Reference Specifications
| First bubble washer model | WQ-3000 |
| First bubble washer size | 3000 x 1000 x 1550 mm |
| Second bubble washer model | WQ-8000 |
| Second bubble washer size | 8000 x 1200 x 1550 mm |
| Conveyor type | Mesh chain |
| Vibration dewatering screen | 2000 x 1000 x 1200 mm |
| Air-drying section | 8000 x 1000 x 1200 mm |
| Main material | Stainless steel |
| Conveying speed | Adjustable with variable-frequency control |
| Line configuration | Customizable by process and capacity |
Specifications can be customized according to raw material size, output requirement, plant layout, discharge height and downstream processing equipment.
